Introduction to multi-objective reinforcement learning

Santeri Heiskanen

2024-12-11

Multi-objective reinforcement learning in a nutshell

• Single-objective reinforcement learning (SORL): The optimal behaviour is defined via scalar reward.
• Multi-objective reinforcement learning (MORL): Consider multiple conflicting objectives simultaneously.
• Policy \(\pi\) is considered Pareto optimal if it:
  1. outperforms all other policies in at least one objective, and
  2. is (at least) equally good in other objectives.
• Goal: Find a set of Pareto-optimal policies.¹

Figure 1: Conceptual Pareto front for two objectives. Each point in the plot represents a value of policy \(\pi\) with given preference \(\mathbf{w}\).

• SORL: Optimal behaviour decided by single scalar valued reward.
  • Too simplistic for many real-world scenarios.
• MORL consider multiple CONFLICTING OBJECTIVES.
• Intuitively, one tries to find an optimal trade-off between objectives.
• The final goal is to have a set of optimal trade-offs for different preferences.
• NOTE: assumes that we do not know the preferences before the optimization.
• NOTE: There are two main approaches: Utility based on axiomatic. Skip the difference here.

1. The exact goal depends on multiple factors, including the type of utility function. See (Roijers et al. 2013) for more details.

Why consider multiple objectives?

1. Move responsibility of choosing the desired trade-off between the objectives from engineer to end-user.
2. The desired trade-off can be determined after the optimization is done and the results can be observed.
3. There may be uncertainty in user preferences between objectives.

• Considering multiple objectives will complicate problem, so why bother?
• Some researchers argue that one objective is all you need (Barton).
• There is a complicated taxonomy available, yet, we will consider only few cases here.
• Instead of the engineering designing the results in ad-hoc way, the user can deside the desired trade-off
• It is not always clear how certain trade-offs affect the found policy. with MORL one can first create the set of solutions, and then choose the desired trade-off after observing the options.
• It is also possible that one does not know the preferences before hand / they might change during the process.
• E.g. design specifications of mobile device change so that a better energy efficiency is required.

Example: Multi-objective Halfcheetah

• Two objectives: Energy consumption and running speed.
• All behaviours are generated by a single policy that is conditioned on the preferences between the objectives.

• Practical example: Halfcheetah with two conflicting objectives.
• A single policy is used to generate different behaviours based on the desired trade-off between the objectives.
• The “optimal” behaviours clearly differ quite significantly. How to generalize? This is a common issue in the MORL context.

Multi-objective MDPs and value-functions

• Formally, a multi-objective sequential decision making problem is presented as a multi-objective Markov decision process MOMDP: \(\langle S, A, T, \gamma, \mu, \mathbf{R}\rangle\).

• The major difference to the traditional MDP’s is the inclusion of vector valued reward function \(\mathbf{R}: S \times A \times S \rightarrow \mathbb{R}^d\), where \(d \geq 2\) is the number of objectives.

• Vector-valued value-function is defined as in the single-objective case: \[\mathbf{V}^{\pi} = \mathbb{E}\left[\sum_{t=0}^\infty \gamma^t \mathbf{r}_{t}\,\vert\,\pi, \mu\right]\]

• Consider two policies \(\pi\) and \(\pi'\) with two objectives \(i\) and \(j\):

  • It is possible to find situation such that \(V_i^\pi > V_i^{\pi'}\) while \(V_j^\pi < V_j^{\pi'}\)
  • → Value-function defines only partial ordering over the value-space.

• NOTE: This is very heavy, yet important slide on mathematics.
• Main difference between MDP’s and MOMDP’s is the vector-valued reward function.
• Note: usually \(d\) is 2 or 3. While theory covered here does not limit \(d\), methods that work for low d usually do not work well with high d.
• The value-function can be defined as with the MDPs bu just swapping scalarized reward to the vector-valued reward.
• Issue: In MPDs, one could find the optimal policy by finding a the optimal value-function. In MORL, the same does not hold.
• One needs information about the user preferences over the objectives.

Utility functions

• Utility function (or scalarization function) is a mapping that encodes the user preferences over the objectives: \[ u: \mathbb{R}^d \rightarrow \mathbb{R} \]
• In practice, the user preferences are described as a weight vector: \[ \mathbf{w} = [w_1, w_2, \dots, w_d],\; \sum_{i=1}^d w_i = 1\, \land\, \forall i:\; 0 < w_i < 1 \]
• The vector-valued value-function can be converted back to scalar-valued function using the utility function \[ V_u^\pi = u(\mathbf{V}^\pi) \]
• The scalarized value-function defines a total ordering of the value-space for a given preference.

• To fix the issue with vector-valued value-function, we need to consider the user preferences over the objectives.
• Intuition: Utility functions encode the user preferences, and reduce the MO optimization back to scalar valued case.
• The user preferences is usually presented as a weight vector, where each objective presents the relative performance of the objectives. Easy to achieve by normalizing the vector.
• Scalarized utility functions define total ordering of policies for the given preferences. EMPHASIZE THIS

Types of utility functions

• Intuitively, the scalarized value should increase, if the value of one objective increases, while the values of other objectives remain unchanged.
  • i.e. \(u([0.5, 0.5]) > u([0.5, 0.1])\).
• Monotonically increasing utility functions fulfill this requirement.
  • This is a minimal assumption about the form of the utility function.
  • Crucially, this set contains non-linear utility functions, such as Tchebycheff utility function (Perny and Weng 2010).
• Linear utility functions are commonly used in practice
  • \(V_{\mathbf{w}}^\pi = \mathbf{w}^T \mathbf{V}^\pi\)
  • In addition to having certain important theoretical properties, they are also easy to interpret.

• There are two common classes of utility functions that one can consider.
• Minimal assumption: Increase in one value also increases the scalarized value. Restriction comes from intuitive idea of a reward.
• Monotonically increasing functions are the widest class of functions that fulfill this criteria.
• Other, more commonly researched set of functions are linear utility functions.
• Are easy to interpret, and hold certain assumptions as will be seen.

What to optimize for?

• In SORL, the goal is to optimize the expected cumulative return.
• MORL, there are two optimality criteria:

  • Scalarized expected return (SER) \[ V_u^\pi = u\Biggl(\mathbb{E}\left[\sum_{t=0}^\infty \gamma^t \mathbf{r}_t\,\bigg\vert\,\pi, s_0\right] \Biggl) \]

  • Expected scalarized return (ESR) \[ V_u^\pi = \mathbb{E}\left[u\left(\sum_{t=0}^\infty \gamma^t \mathbf{r}_t\right)\,\bigg\vert\,\pi, s_0\right] \]

• If the utility function is linear, both criteria produce same policies.

• In SORL case, the goal was to optimize the expected cumulative return
• In MORL, there are two ways of defining the optimality criterion.
• SER: User utility calculated over many runs -> Best when the utility can be collected over multiple runs
• ESR: User utility calculated from a single run -> Best when one cares about the utility during single run. For example, medical treatments.

Bellman equation with ESR

• Recall Bellman equation: \[ \mathbf{V}^{\pi}(s) = \underbrace{\mathbf{R}_\tau}_{\text{Immediate reward}} + \gamma \underbrace{\sum_{s'} P\big(s'\,\vert\,s, \pi(s)\big)\mathbf{V}^\pi(s')}_{\text{Expected return from state $s'$ onwards}} \]

• Consider what happens with the ESR optimality criterion with non-linear utility function.

• \[ \mathbb{E}\left[u\bigg(\mathbf{R}_\tau + \sum_{t=\tau}^\infty \gamma^t \mathbf{r}_t\bigg)\,\bigg\vert\,\pi, s_\tau \right] \neq u(\mathbf{R}_\tau) + \mathbb{E}\left[ u\bigg(\sum_{t=\tau}^\infty \gamma^t \mathbf{r}_t\bigg)\,\bigg\vert\, \pi, s_\tau\right] \]

• Implication: most existing methods considering MDPs cannot be used with ESR optimality criterion and non-linear utility functions.

• One needs to take into account the previously accumulated rewards.

• Bellman equation: Value function is the sum of immediate return and the expected return from this state onwards.
• The Bellman equation assumes the additivity of the expectation.
• Most of the solulations considering MDP’s use this property.
• If the utility function is non-linear, the expectation cannot be splitted into immediate reward and future rewards.
• Implication: One needs to take into account the previously accumulated rewards when optimizing for the policy at state \(s_t\).
• This has limited the use of ESR, since a new methods must be developed to solve problems with criterion.

How to solve a MORL problem

• Previous slides: The agent optimizes the scalarized expected return/expected scalarized return. However, our goal is to find a set of solutions.

• (Roijers and Whiteson 2017) identified two approaches for solving a MORL task.

• Outer loop methods:

  Run single-objective algorithms with different user preferences repeatedly.

  solutions = set()
  for w in W:
     pi_w = SORL(w) # Solve single-objective problem with given w
     solutions.add(pi_w)

• Inner loop methods: Modify the underlying algorithm, and directly generate a solution set.

• Consider only multi-solution MORL. In a single-objective case, the solutions are more simple.
• NOTE: The agent optimizes the scalarized reward, while we care about the whole set.
• Inner loop methods are simple. However, they have two common issues
  1. How to select prefernces? close preferences likely to produce same policies.
  2. How to share information between learned policies.

Are deterministic stationary policies enough?

• The one-state MOMDP in Figure 3 contains 3 deterministic stationary policies.
• These deterministic policies have values: \(\mathbf{V}^{\pi_1} = \big(3 / (1 - \gamma), 0\big)\), \(\mathbf{V}^{\pi_2} = \big(0, 3 / (1 - \gamma)\big)\), \(\mathbf{V}^{\pi_3} = \big(1/(1 - \gamma), 1/(1-\gamma)\big)\)
• Create a mixture policy \(\pi_m\) that selects action \(a_1\) with probability \(p\), and action \(a_2\) otherwise (Vamplew et al. 2009).
  • \(\mathbf{V}^{\pi_m} = \big(3p / (1 - \gamma), 3(1-p)/(1 - \gamma)\big)\)

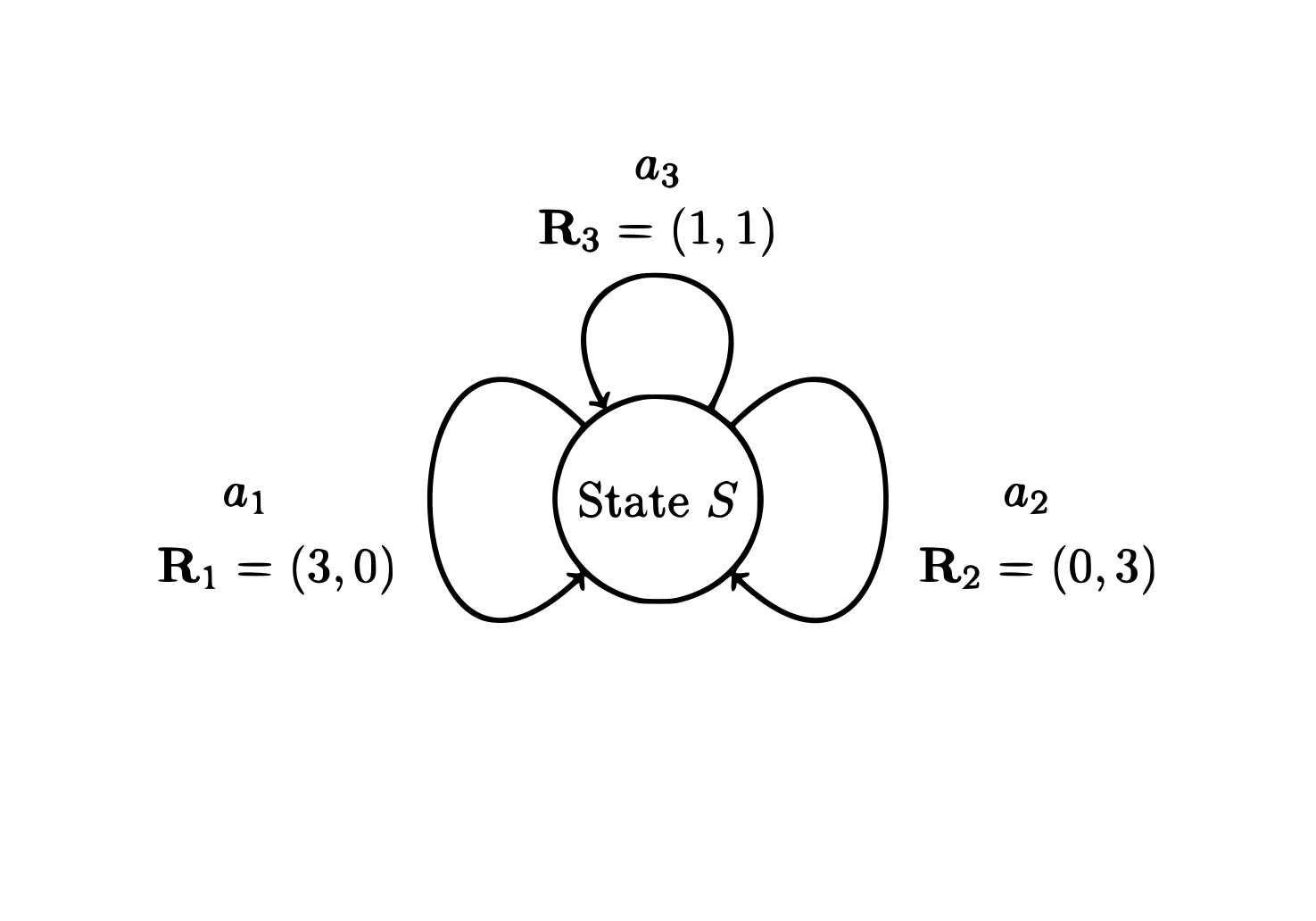

Figure 3: One state MOMDP with three actions. Example follows (Roijers et al. 2013), adapted from (White 1982)

• To show that a non-stationary policy can dominate a stationary policy, consider a policy that alternates between actions \(a_1\) and \(a_2\), starting from \(a_1\) (White 1982).

• NOTE: The slide is again quite dense. Take your time to explain the idea.
• For MPD’s, there always exists a stationary deterministic optimal policy.
• Three deterministic policies, where each policy selects always one of the actions.
• By constructing a mixture policy, one can create a policy that dominates the deterministic policy \(pi^3\) by choosing \(p \in [1/3, 2/3]\)
• Moreover, one can construct non-stationary mixture policy that dominates the stationary policy \(pi^3\) when \(gamma > 0.5\).
• It is not enough to consider stochastic policies. However, note that the first result holds when considering linear utility function.
• NOTE: This same example can be used to shown that stationary policies are not enough either.

Are linear utility functions all you need?

• Can non-convex portions of Pareto-front be recovered with a linear utility function?
• (Lu, Herman, and Yu 2023): The value-functions are convex.¹. → One can discover the whole Pareto-front with a linear utility function.
• Existing algorithms have two bottlenecks:
  1. Preference for deterministic policies.
  2. Numerical instability.
• These issues can be remedied by augmenting the reward-function with a strongly concave term²: \[ \pi(\cdot;\mathbf{w}) = \underset{\pi'(\cdot;\mathbf{w})}{\mathrm{arg\;max}}\, \mathbb{E}\left[\sum_{t=0}^\infty \gamma^t \big(\mathbf{w}^T \mathbf{R}(a_t, s_t) + \alpha \mathcal{H}(\pi'(s_t;\mathbf{w}))\big)\right] \]
• This is a multi-objective version of Soft-Actor Critic (Haarnoja et al. 2018).

• As we have seen previously, the linear utility functions are convenient:
  1. One can use existing methods
  2. They are simple to understand and use.
• Issue: They have issues recovering non-convex portions of the Pareto-front
• It was though that this is due to non-regularly shaped value-functions.
• It was not sure if it was even theoretically find the whole Pareto-front when using linear utility functions.
• Induced value-functions are convex: One can theoretically find the PF by traversing over all preferences.
• NOTE: This justifies the use of the outer-loop methods!

1. Only stochastic stationary policies were considered

2. Here the entropy operator \(\mathcal{H}(q) = - \int q(a) \log q(a) da\) is used. However, in theory any strongly concave function can be used.

Material & Resources

• MORL-baselines: Baseline algorithms.

• MO-Gymnasium: Multi-objective environments.

• Overview of theory and applications of multi-objective sequential decision making algorithms: Hayes, Conor F., Roxana Rădulescu, Eugenio Bargiacchi, Johan Källström, Matthew Macfarlane, Mathieu Reymond, Timothy Verstraeten, et al. 2022. “A Practical Guide to Multi-Objective Reinforcement Learning and Planning.” Autonomous Agents and Multi-Agent Systems 36 (1): 26.

• Algorithm for continuous control tasks: Xu, Jie, Yunsheng Tian, Pingchuan Ma, Daniela Rus, Shinjiro Sueda, and Wojciech Matusik. 2020. “Prediction-Guided Multi-Objective Reinforcement Learning for Continuous Robot Control.” In Proceedings of the 37th International Conference on Machine Learning.

• Sample-efficient MOLR algorithm based on GPI: Alegre, Lucas N., Ana L. C. Bazzan, Diederik M. Roijers, Ann Nowé, and Bruno C. da Silva. 2023. “Sample-Efficient Multi-Objective Learning via Generalized Policy Improvement Prioritization.” In Proceedings of the 2023 International Conference on Autonomous Agents and Multiagent Systems.

References

Haarnoja, Tuomas, Aurick Zhou, Pieter Abbeel, and Sergey Levine. 2018. “Soft Actor-Critic: Off-Policy Maximum Entropy Deep Reinforcement Learning with a Stochastic Actor.” In International Conference on Machine Learning.

Lu, Haoye, Daniel Herman, and Yaoliang Yu. 2023. “Multi-Objective Reinforcement Learning: Convexity, Stationarity and Pareto Optimality.” In The Eleventh International Conference on Learning Representations.

Perny, Patrice, and Paul Weng. 2010. “On Finding Compromise Solutions in Multiobjective Markov Decision Processes.” In ECAI 2010. Vol. 215.

Roijers, Diederik M., Peter Vamplew, Shimon Whiteson, and Richard Dazeley. 2013. “A Survey of Multi-Objective Sequential Decision-Making.” Journal of Artificial Intelligence Research 48.

Roijers, Diederik M., and Shimon Whiteson. 2017. Multi-Objective Decision Making. 1st ed. Syntehesis Lectures on Artificial Intelligence and Machine Learning. Springer Cham.

Vamplew, Peter, Richard Dazeley, Ewan Barker, and Andrei Kelarev. 2009. “Constructing Stochastic Mixture Policies for Episodic Multiobjective Reinforcement Learning Tasks.” In AI 2009: Advances in Artificial Intelligence.

White, D. J. 1982. “Multi-Objective Infinite-Horizon Discounted Markov Decision Processes.” Journal of Mathematical Analysis and Applications 89 (2).
